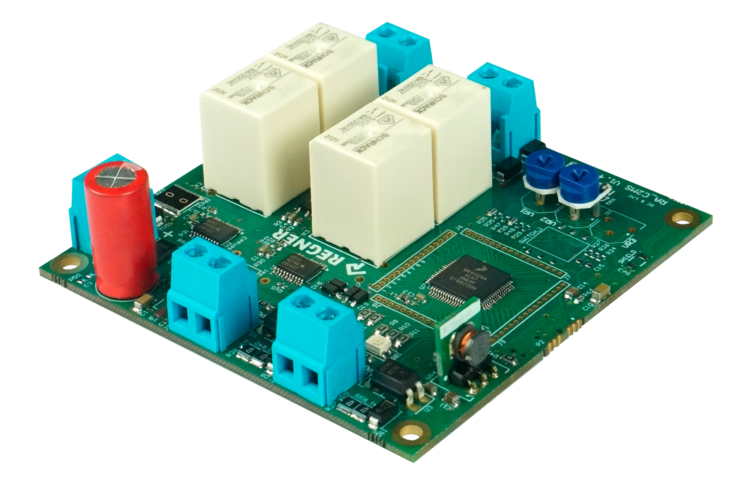

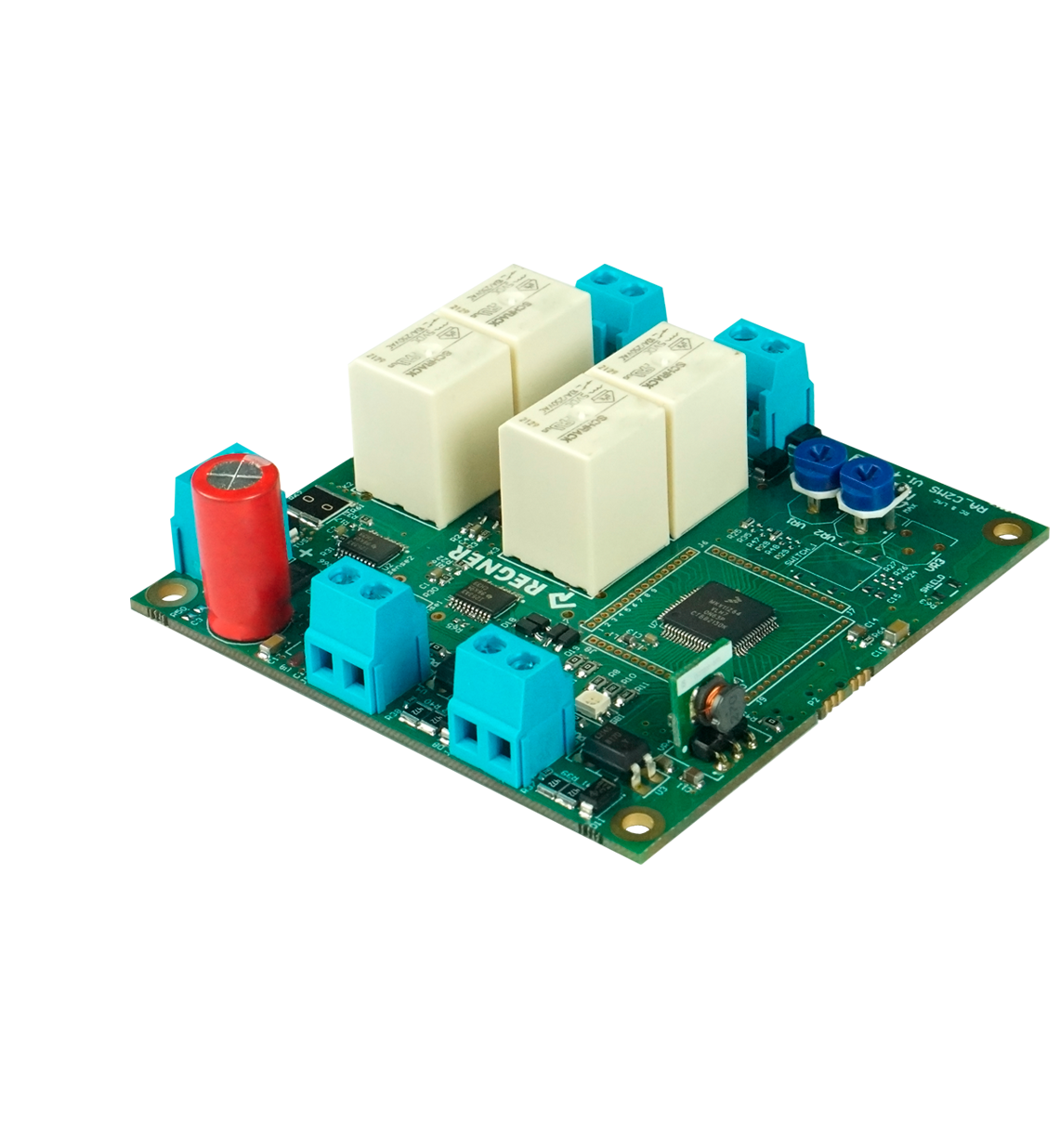

RAC2MS
Precise
control for
two actuators
Two actuators under control
RAC2MS effectively controls a 24 VDC system of two actuators and up to 7A per channel.

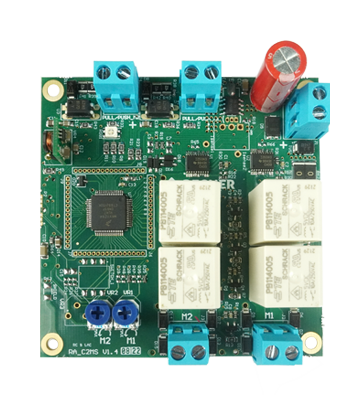

Easy interface
The controller features a simple interfacewith screw-in cable connectors, mounting holes, and an RGB LED that indicates the status of each channel.
Integrated safety
RAC2MS prevents any unforeseen damage with adjustable current limit, overcurrent protection, anti-entrapment, and dynamic braking features.

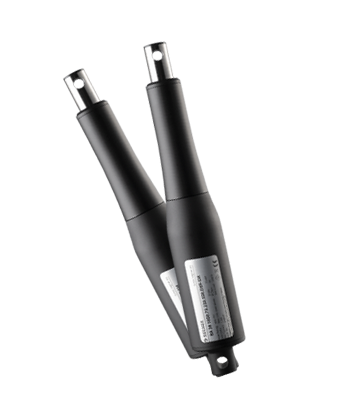

Two output channels
Supports two high power linear actuators (24VDC and 7A per channel).
Compact dimension
Fits into any application, even the tightest.

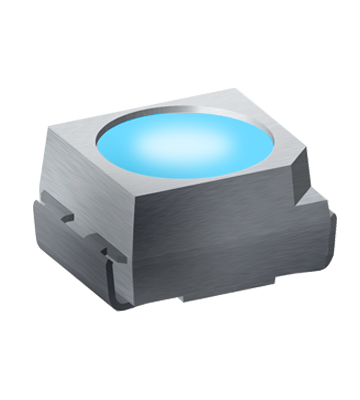

RGB LED indicator
Reports the status of each channel for 0.5 seconds.

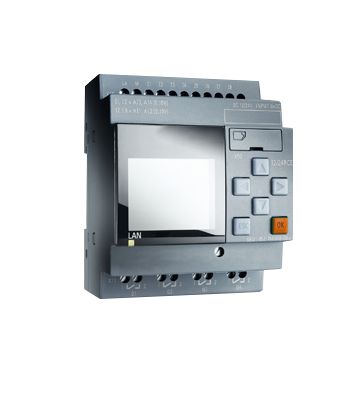

Automation compatibility
24 VDC signal input compatible with PLC'S.

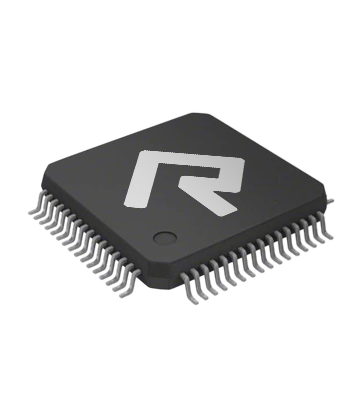

Reliability and speed
75 MHz Cortex microprocessor.
General specifications
Power supply
24 VDC ± 4 VDC
Cable input
24 to 12 AWG (2,5 mm2)
Standby current
15 mA
Current consumption
7 A (Continous) | 13 A (4 seconds peak)
Current limit
0 ... 7 A per channel
Digital inputs
0 - 24 VDC
Operating temperature
- 20 to 60 ºC
Weight
68 g
Dimensions
75 x 80 x 21 mm
Core features
Brake
When the RAC2MS is powered off, the actuators are automatically braked by short-circuiting the motor coils.
Current limits
A current limit between 0 and 6 A can be configured for each channel.
Jam management
After an actuator is stopped by a jam or by the current control feature, it only can move in the opposite direction.
REGNER® products are subjected to rigorous test procedures in which endurance tests are carried out to ensure reliable operation in applications and environments anywhere in the world.
We supply electric linear actuators of the highest quality that have been evaluated, approved and certified by accredited certification entities to achieve maximum safety and customer satisfaction.
How to read our codes?
Actuator Configuration Guide RAC2MS
Position
1
2
3
Example
RAC
2M
S
Concept
Regner Actuator Controller
2 Motors
Standard version
