RA-47X

Short movements for high speed

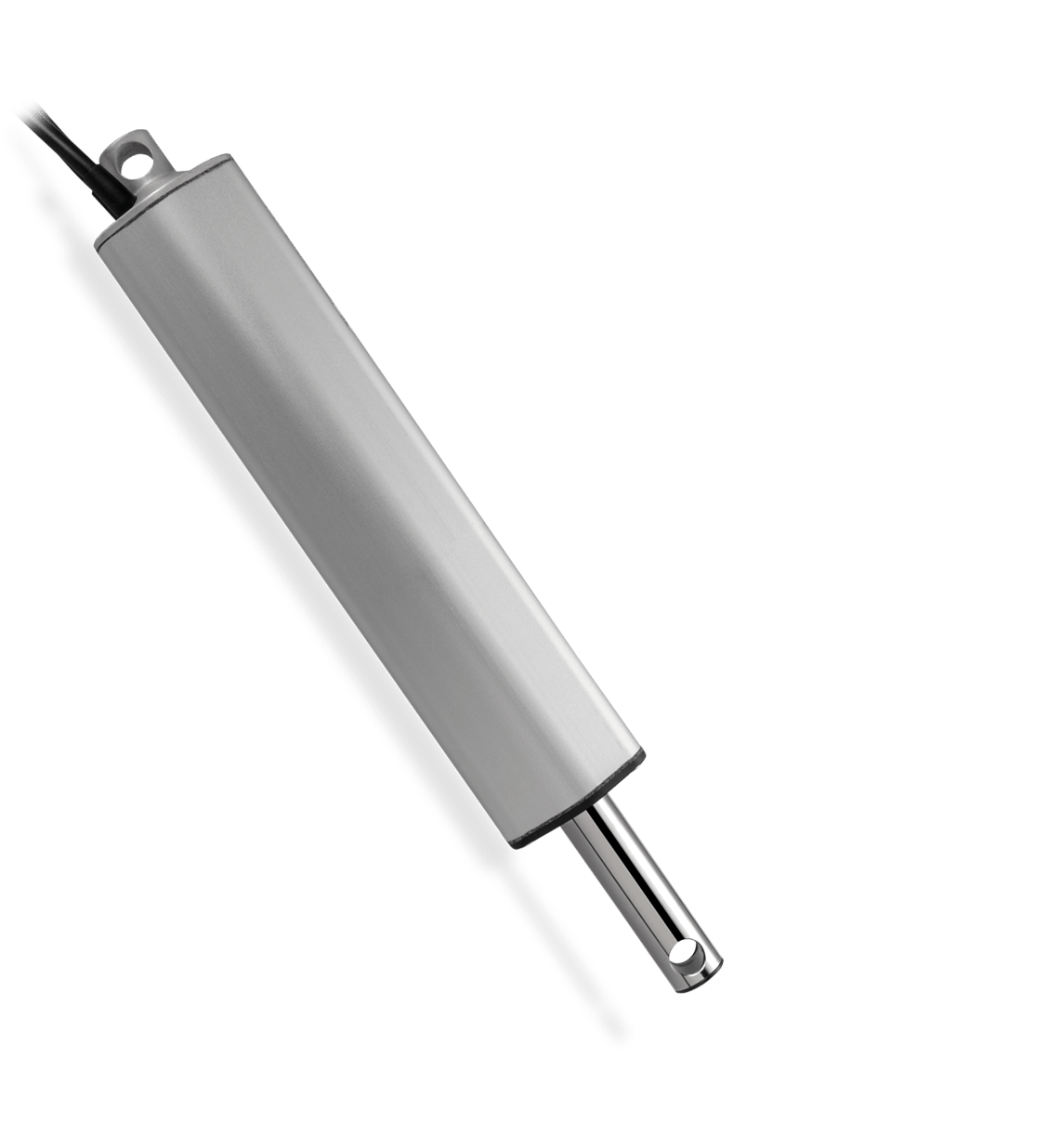

The RA-47X has become a benchmark linear actuator due to its power density and high performance.

Reaching 70 mm/s, this high-speed actuator features a 12 VDC permanent magnet motor and a ball screw that converts rotary motion into linear motion with low friction losses, translating into high electromechanical efficiency. By distributing the effort between several balls, the screw is capable of withstanding thrust loads of up to 1.000 N.

Digital control of the position Because power isn't everything, the RA-47X incorporates a highly reliable Hall sensor that guarantees the safe and efficient operation of the actuator. Its digital signal allows precise control of the rod position at all times.
Limit switches for greater reliability The RA-47X has built-in limit switches to ensure that the actuator stops when it reaches the end of its stroke.
Aluminium casing for greater protection The RA-47X is encased in an ultra-strong anodised aluminium body, allowing it to keep working even in the harshest conditions.
IP65 protection level The actuator has a tight seal and guarantees total protection against the penetration of any solid body, and also ensures protection against water sprays from any direction.
IP65 protection level which guarantees a tight seal and protects against water sprays from any direction.
Digital signal Hall Sensor for absolute position control.
Permanent magnet motor with high power density.
Ball screw which converts rotary motion into linear motion with low friction losses.
Limit switches to ensure that the actuator stops at the end of its stroke.
Main specifications
Supply
12 VDC
Retracted length (between centres)
240,5 mm + stroke
Stroke
50 mm
Housing material
Aluminium
Rod material
Polished stainless steel
IP Rating
IP65
Integrated limit switch
Maximum load
1000 N
Maximum speed
70 mm/s
Hall Sensor

REGNER® products are subjected to rigorous test procedures in which endurance tests are carried out to ensure reliable operation in applications and environments anywhere in the world.

We supply electric linear actuators of the highest quality that have been evaluated, approved and certified by accredited certification entities to achieve maximum safety and customer satisfaction.

How to read our codes?

Actuator Configuration Guide RA-47X

Position
1
2
3
4
5
6
7
8
Example
RA47X
1000
50
290
300
D
12
E
Concept
Actuator type
Maximum load (N)
Stroke length (mm)
Minimum length* (mm)
Cable length (mm)
Hole type**
Hole diameter (mm)
Position control***

* Length between centres when the actuator is retracted. This is the minimum length to consider for mounting.
** Mounting hole type: H = Standard ; D = Clevis .
*** Type of position control. E = Hall sensor.

Buy your actuator

RA-47X

695,00

Short movements for high speed

Clear
SKU: N/A Category:

Description

The RA-47X has become a benchmark linear actuator due to its power density and high performance.

Reaching 70 mm/s, this high-speed actuator features a 12 VDC permanent magnet motor and a ball screw that converts rotary motion into linear motion with low friction losses, translating into high electromechanical efficiency. By distributing the effort between several balls, the screw is capable of withstanding thrust loads of up to 1.000 N.

Additional information

Weight 1,7 kg
Dimensions 38 × 9 × 9 cm
Stroke

50mm
